The Patent Plate is attached to the left front door pillar.

The Patent Plate is attached to the left front door pillar.

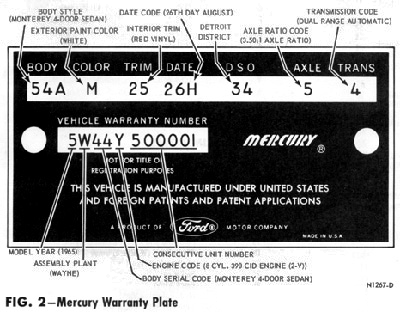

The figure illustrates the Mercury Warranty/Data plate. The plate is located on the rear (lock) face
of the left front door panel.

The official Vehicle Identification Number for title and registration purposes is stamped on a tab attached
to the top right side (weld flange) of the dash panel in the engine compartment (see figure below).  Do not
use the Vehicle Warranty Number which appears on the Warranty plate for title or registration purposes.



Vehicle Data

The vehicle data appears in a line across the top of the warranty plate. The first two letters and a number
identify the Body Style. The following one or two letters identify the Exterior Paint Color. The next code
consisting of two numbers, or a letter and a number, identifies the Interior Trim. The Date Code showing
the date the car was manufactured follows the Trim Code and consists of two numbers and a letter. The
next code gives the district in which the car was ordered and consist of two numbers. The next to the last
code is the Axle Ratio Code and is designated by a number for a conventional axle or a letter for an
Equa-Lock axle. The last code in the vehicle data is the Transmission Code and consist of one number.
The charts that follow, list in detail the various vehicle data codes.



VEHICLE WARRANTY NUMBER

The vehicle warranty number is the second line of numbers and letters appearing on the Warranty Plate.
The first number indicates the model year. The letter following the model year indicates the assembly plant
at which the car was manufactured. The next two numbers designate the Body Serial Code. The letter
following the Body Serial Code designates the Engine Code. The remaining numbers indicate the
Consecutive Unit Number. The charts that follow, list in detail the various Vehicle Warranty Number codes.



MODEL YEAR
The numeral "5" designates 1965.



BODY

Body Serial Code |  Body Style Code |  Body Type

Monterey

42                                 50A                4-Door Sedan †

43                                  62A                 2-Door Sedan

44                                  54A                 4-Door Sedan

45                                  76A                  2-Door Convertible

47                                   63A                 2-Door H/T Fastback

48                                   57A                 4-Door H/T Fastback

45                                   76G                 2-Door Convertible*

47                                   63G                2-Door H/T Fastback*

Montclair

52                                   50B                4-Door Sedan †

57                                    63B                2-Door H/T Fastback

58                                    57B                 4-Door H/T Fastback

Parklane

62                                    50F                4-Door Sedan †

65                                    76F                4-Door Sedan †

65                                    76C                4-Door Convertible*

67                                    63F                 2-Door H/T Fastback

67                                    63C                2-Door H/T Fastback*

Commuter

72                                     71B                 4-Door 6 Passengr Station Wagon

72                                     71C                 4-Door 9 Passengr Station Wagon

Colony Park

76                                      71A                 4-Door 6 Passengr Station Wagon

76                                      71E                  4-Door 9 Passengr Station Wagon

† Reverse Back Window
* Bucket Seat



Color
Two-tone paint codes us the same symbols as the single colors except that two symbols are used.
The lower body color will appear first in the warranty plate paint color space.

If a special paint is used, the paint color space will not be stamped.


Code /M-30-J No. /Color  /Sales Name

A       1724   Black    Onyx

C       1736   Med Ivy Gold Met   Ivy Gold

D       1625   Med.Turq Met.  Silver Turquoise

F        1226   Med. Blue   Tiffany Blue

H        1544  Dk Blue Met  Midnight Blue

I          1737   Lt Beige Met    Sandrift

J         1515   Red   Carnival Red

M        1238  White  Polar White

P         1739  Palomino   Pecan Frost

R         1879  Dk Green   Olive Mist

T         1631  Lt Beige  Fawn

V        1729  Yellow  Maize

X         1632  Maroon Met.  Burgandy

Y         1669  Med Blue Met   Blue Ice

5          1731  Dk  Turquoise Met   Ocean Turquoise

*"M-32-J" Acrylic Paint Alternate with "M-30-J"



TRIM
Deviation trim sets will use existing trim codes plus a suffix.  A trim code with a numerical
suffix is not serviced, while a trim code with an alphabetical suffix is serviced.

CodeTrim Schemes

03 Green Vinyl

04 Beige Vinyl

12 Blue and Lt. Blue Met. Fabric & Vinyl

15 Red Fabric & Vinyl

16 Black Fabric & Vinyl

17 Turquoise and Lt. Turq. Met. Fabric & Vinyl

19 Palomino and Med. Palomino Fabric & Vinyl

D6 White Pearl (w/Black) Vinyl

22 Lt. Blue Met. Vinyl

25 Red Vinyl

26 Black Vinyl

29 Med. Palomino Vinyl

32 Blue and Blue Met. Vinyl

33 Burgundy Vinyl

35 Red Vinyl

36 Black Vinyl

37 Turquoise and Turq. Met. Vinyl

38 Ivy Gold and Lt. Ivy Gold Vinyl

39 Palomino and Med. Palomino Vinyl

E2 White Pearl (w/Blue) Vinyl

E3 White Pearl (w/Burgundy) Vinyl

E5 White Pearl (w/Red) Vinyl

E6 White Pearl (w/Black) Vinyl

E7 White Pearl (w/Turq.) Vinyl

E8 White Pearl (w/Ivy Gold) Vinyl

E9 White Pearl (w/Palomino) Vinyl

42 Med. Blue Met. Vinyl

45 Red Vinyl

46 Black Vinyl

47 Turquoise Vinyl

48 Lt. Ivy Gold D/L Vinyl

49 Lt. Palomino Vinyl

52 Blue and Blue Met. Fabric & Vinyl

55 Red Fabric & Vinyl

56 Black Fabric & Vinyl

57 Turquoise and Turq. Met. Fabric & Vinyl

58 Ivy Gold Fabric & Vinyl

59 Palomino and Med. Palomino Fabric & Vinyl

F6 White (w/Black) Vinyl

62 Blue Met. and Lt. Blue Met. Vinyl

65 Red Vinyl

66 Black Vinyl

67 Med. Turq. and Lt. Turq. Vinyl

68 Lt. Ivy Gold Vinyl

69 Med. Palomino Vinyl

G2 White Pearl (w/Blue) Vinyl

L2 White Pearl (w/Blue)with Headrest Vinyl

G3 White Pearl (w/Burgundy)with Headrest Vinyl

L3 White Pearl (w/Burgundy)with Headrest Vinyl

G5 White Pearl (w/Red) Vinyl

L5 White Pearl (w/Red)with Headrest Vinyl

G6 White Pearl (w/Black) Vinyl

L6 White Pearl (w/Black)with Headrest Vinyl

G7 White Pearl (w/Turq.) Vinyl

L7 White Pearl (w/Turq.)with Headrest Vinyl

G8 White Pearl (w/Ivy Gold) Vinyl

L8 White Pearl (w/Ivy Gold.)with Headrest Vinyl

G9 White Pearl (w/Palomino) Vinyl

L9 White Pearl (w/Palomino)with Headrest Vinyl

72 Med. Blue Met. Vinyl

K2 Blue with Headrest Vinyl

75 Red Vinyl

K5 Red with Headrest Vinyl

76 Black Vinyl

K6 Black with Headrest Vinyl

77 Turquoise Vinyl

K7 Turquoise with Headrest Vinyl

78 Lt. Ivy Gold D/L Vinyl

K8 Ivy Gold with Headrest Vinyl

79 Med. Palomino Vinyl

K9 Med. Palomino with Headrest Vinyl

M6 White Pearl (w/Black) Vinyl

82 Lt. Blue Met. Vinyl

85 Red Vinyl

86 Black Vinyl

87 Turquoise Vinyl

89 Med. Palomino Vinyl

92 Lt. Blue Met. Vinyl (Mercury), Fabric & Vinyl (Ford)

93 Burgundy Fabric & Vinyl

95 Red Vinyl

96 Black Vinyl (Mercury), Fabric & Vinyl (Ford)

97 Turquoise Fabric & Vinyl

99 Med. Palomino Vinyl (Mercury), Fabric & Vinyl (Ford)

A9 Palomino Fabric & Vinyl

P9 Palomino with Headrest Fabric & Vinyl

B3 Burgundy Leather

B9 Med. Palomino Leather

C3 Burgundy Leather

C9 Med. Palomino Leather

Y5 Red Vinyl

Y9 Palomino Vinyl

Z6 Black Vinyl

Z9 Palomino Vinyl

DATE
The code letters for the month are preceded by a numeral to show the day of the month when
the car was completed.  The second year code letters are to be used if 1963 model production
exceeds 12 months.


Month           1st Model Yr     2nd Model Year

January                A                        N

February              B                        P

March                   C                       Q

April                      D                       R

May                       E                        S

June                      F                       T

July                       G                       U

August                  H                       V

September            J                       W

October                K                        X

November             L                       Y

December            M                       Z



DSO
Domestic Special Orders, Foreign Special Orders, and Pre-Approved Special Orders
have the complete order number recorded in this space.  Also to appear in this space
is the two-digit code number of the district which ordered the unit.  If the unit is regular
production, only the District code number will appear.

District Code

CodeDistrict

11   Boston

15New York

16Philadelphia

17Washington

21  Atlanta

22  Dallas

23 Jacksonville

26Memphis

31  Buffalo

32  Cincinnati

33  Cleveland

34  Detroit

41  Chicago

42 St. Louis

51  Denver

52  Los Angeles

53  Oakland

54  Seattle

81  Ford of Canada

84  Home Office Reserve

90-99Export



AXLE

CodeRatio

1    3.00:1

4   3.25:1

5   3.50:1

8   3.89:1

9   4.11:1



A    3.00:1

E   3.25:1

F   3.50:1

H   3.89:1

I   4.11:1



TRANSMISSION

CodeType

1   3-Speed Manual-Shift

2  Overdrive

4   Cruise-O-Matic (Ford) Multi-Drive (Mercury)

5   4-Speed Manual-Shift

6  C-4 Automatic Dual Range



ASSEMBLY PLANT

Code  Assembly Plant

A  Atlanta

D   Dallas

E   Mahwah

F   Dearborn

G   Chicago

H   Lorain

J   Los Angeles

K   Kansas City

L   Michigan Truck

N   Norfolk

P   Twin Cities

R   San Jose

S   Pilot Plant

T   Metuchen

U   Louisville

W   Wayne

Y   Wixom

Z   St. Louis



ENGINE

Code

C 8-Cylinder 289 Cubic Inch (4V Prem.)

H 8-Cylinder 390 Cubic Inch (2V Spec.)

L 8-Cylinder 427 Cubic Inch (4V Oh Cam)

M 8-Cylinder 427 Cubic Inch (8V Oh Cam)

P 8-Cylinder 390 Cubic Inch (4V Spec.)

R 8-Cylinder 427 Cubic Inch (8V Hi Pref.)

V 6-Cylinder 240 Cubic Inch (1V)

X 8-Cylinder 352 Cubic Inch (4V)

Y 8-Cylinder 390 Cubic Inch (2V)

Z 8-Cylinder 390 Cubic Inch (4V)

5 6-Cylinder *240 Cubic Inch (1V)

3 8-Cylinder *289 Cubic Inch (4V)

9 8-Cylinder *390 Cubic Inch (4V)

* Low Compression
