The Patent Plate is attached to the left front door pillar.

The Patent Plate is attached to the left front door pillar.

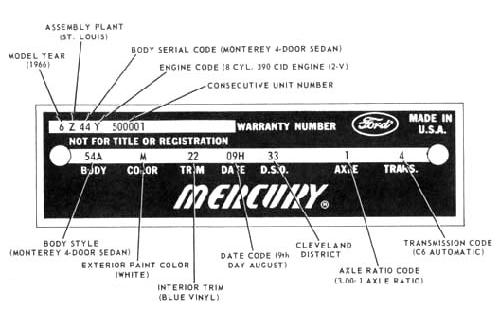

The Warranty plate is located on the rear (lock) face of the left front door panel.

The official Vehicle Identification Number for title and registration purposes is stamped on a tab attached to the top right side (weld flange) of the dash panel in the engine compartment (see below). Do not use the "Vehicle Warranty" plate for title or registration purposes.


Vehicle Data

The vehicle data appears in a line across the top of the warranty plate. The first two letters and a number
identify the Body Style. The following one or two letters identify the Exterior Paint Color. The next code
consisting of two numbers, or a letter and a number, identifies the Interior Trim. The Date Code showing
the date the car was manufactured follows the Trim Code and consists of two numbers and a letter. The
next code gives the district in which the car was ordered and consist of two numbers. The next to the last
code is the Axle Ratio Code and is designated by a number for a conventional axle or a letter for an
Equa-Lock axle. The last code in the vehicle data is the Transmission Code and consist of one number.
The charts that follow, list in detail the various vehicle data codes.



The vehicle warranty number is the second line of numbers and letters appearing on the Warranty Plate.
The first number indicates the model year. The letter following the model year indicates the assembly plant
at which the car was manufactured. The next two numbers designate the Body Serial Code. The letter
following the Body Serial Code designates the Engine Code. The remaining numbers indicate the
Consecutive Unit Number. The charts that follow, list in detail the various Vehicle Warranty Number codes.


The numeral "5" designates 1965.



Body Serial Code |  Body Style Code |  Body Type


44                                    54A                     4-Door Sedan

43                                    62A                     2-Door Sedan

42                                    50A                     4-Door Sedan (Rev. B/Lite)

47                                    63A                     2-Door Hardtop (Fastback)

45                                    76A                     2-Door Convertible

48                                     57A                    4-Door Hardtop (Fastback)

S55 (Bucket)

49                                    *63G                   2-Door Hardtop (Fastback)

46                                     *76G                  2-Door Convertible

Montclair (Bench)

54                                      54B                  4-Door Sedan

57                                      63B                  2-Door Hardtop (Fastback)

58                                      57B                  4-Door Hardtop (Fastback)

Parklane (Bench)

62                                       50F                 4-Door Sedan (Rev. B/Lite)

68                                        57F                 4-Door Hardtop (Fastback)

67                                        63F                 2-Door Hardtop (Fastback)

65                                        76F                 2-Door Convertible

Parklane (Bucket)

67                                        63C                 2-Door Hardtop (Fastback)

65                                        76C                 2-Door Convertible

Station Wagons (Bench)


72                                          71B                  4-Door 6 Passenger

72                                         *71C                 4-Door 9 Passenger

-Colony Park-

76                                          71E                  4-Door 6 Passenger

76                                          *71A                4-Door 9 Passenger

*Merchandised as options


Two-tone paint codes us the same symbols as the single colors except that two symbols are used.
The lower body color will appear first in the warranty plate paint color space.

If a special paint is used, the paint color space will not be stamped.

Code /M-30-J No.  /Color  /Sales Name

A    1724     Black   Onyx

C    1900     Dk Gray Met   Coventry Gray

F     1226     Med. Blue   Tiffany Blue

H     1912     Lt BeigeSandstone

K     1903     Dk Blue Met   Caspian Blue

M     1619     White   Polar White

P      1910     Med. Palomino   Bronze

R      1879     Dk Green    Olive Mist

T      2008    Red   Cardinal Red

V      1921     Burnt Orange   Emberglo

X      1632    Maroon Met.   Burgandy

Y       1269 Lt Blue Met     Ice Blue

Z       1915    Med Sage Gold   Sage Gold

2       1907   Dk Turquoise Met   Palisade Turquoise

4       1901    Med Silver Met    Sheffield Silver

8       1955   Yellow   Jamaican Yellow

*"M-32-J" Acrylic Paint Alternate with "M-30-J"


Deviation trim sets will use existing trim codes plus a suffix.  A trim code with a numerical
suffix is not serviced, while a trim code with an alphabetical suffix is serviced.

CodeTrim Schemes

  Colonnade Vinyl Bolster Mayfair Fabric Insert

12 Blue

15 Red

16 Black

17 Aqua

19 Parchment

  Colonnade Vinyl Bolster Shadow Stripe Vinyl Insert

72 Blue

75 Red

76 Black

7D Parchment

  Crinkle Vinyl Bolster Crinkle Vinyl Insert

22 Blue

25 Red

26 Black

2D Parchment

D6 White

42 Blue

45 Red

46 Black

47 Aqua

48 Ivy Gold

4D Parchment

E6 White

62 Blue

65 Red

66 Black

67 Aqua

68 Ivy Gold

6D Parchment

F White

A3 Burgundy

82 Blue

85 Red

86 Black

M6 White

92 Blue

94 Emberglow

95 Red

96 Black

G White

  Crinkle Vinyl Bolster Mosaic Fabric Insert

31 Silver

32 Blue

36 Black

37 Aqua

38 Ivy Gold

39 Parchment Palomino

  Silk Chord Fabric Bolster Brocarre Fabric Insert

51 Silver

52 Blue

53 Burgundy

56 Black

57 Aqua

58 Ivy Gold

5D Parchment


The code letters for the month are preceded by a numeral to show the day of the month when
the car was completed.  The second year code letters are to be used if 1963 model production
exceeds 12 months.

Month           1st Model Yr     2nd Model Year

January                A                        N

February              B                        P

March                   C                       Q

April                      D                       R

May                       E                        S

June                      F                       T

July                       G                       U

August                  H                       V

September            J                       W

October                K                        X

November             L                       Y

December            M                       Z


Domestic Special Orders, Foreign Special Orders, and Pre-Approved Special Orders
have the complete order number recorded in this space.  Also to appear in this space
is the two-digit code number of the district which ordered the unit.  If the unit is regular
production, only the District code number will appear.

District Code


11   Boston

15 New York

16 Philadelphia

17 Washington

21  Atlanta

22  Dallas

23 Jacksonville

26 Memphis

31  Buffalo

32  Cincinnati

33  Cleveland

34  Detroit

41  Chicago

42 St. Louis

51  Denver

52  Los Angeles

53  Oakland

54  Seattle

81  Ford of Canada

84  Home Office Reserve





1    3.00:1

4   3.25:1

5   3.50:1

6  2.80:1


A    3.00:1

D   3.25:1

E   3.50:1

F   2.80:1





1   3-Speed Manual-Shift

4   Automatic C-6

5   4-Speed Manual-Shift

8   Automatic (Multi Drive)



Code  Assembly Plant

S   Pilot Plant

W   Wayne

Z   St. Louis




H 8-Cylinder 390 Cubic Inch (2-barrel Special)

Y 8-Cylinder 390 Cubic Inch (2-barrel)

M 8-Cylinder 410 Cubic Inch (4-barrel)

Q 8-Cylinder 428 Cubic Inch (4-barrel)

P 8-Cylinder 428 Cubic Inch (8-barrel High Police)

8 8-Cylinder 428 Cubic Inch (4-barrel, Low Compression)

* Low Compression
