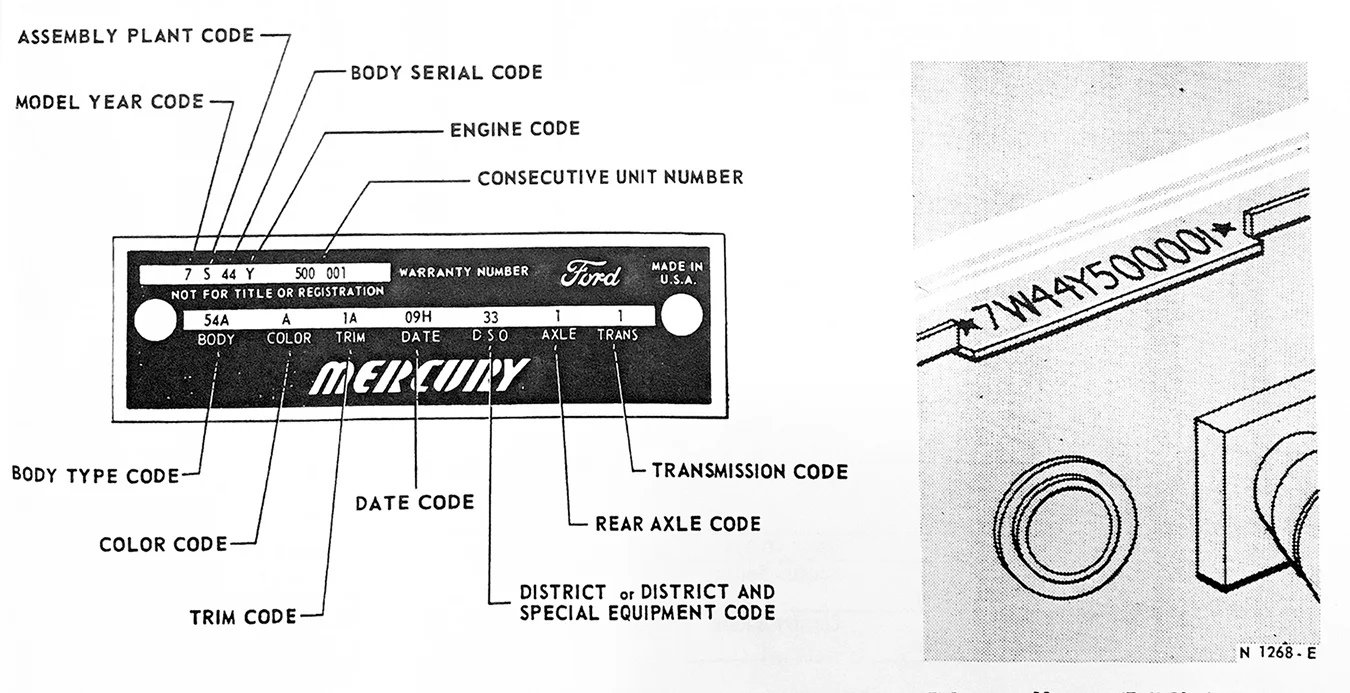

The figures above illustrates the Ford Warranty/Data plates. The plate is located on the rear (lock)
face of the left front door panel.

The official Vehicle Identification Number for title and registration purposes is stamped on a tab
attached to the top right side (weld flange) of the dash panel in the engine compartment (see below).
Do not use the Vehicle Warranty Number which appears on the Warranty plate for title or
registration purposes.



The vehicle warranty number is the second line of numbers and letters appearing on the Warranty Plate.
The first number indicates the model year. The letter following the model year indicates the assembly
plant at which the car was manufactured. The next two numbers designate the Body Serial Code. The
letter following the Body Serial Code designates the Engine Code. The remaining numbers indicate the
Consecutive Unit Number. The charts that follow, list in detail the various Vehicle Warranty Number codes.



The vehicle data appears in a line across the top of the warranty plate. The first two letters
and a number identify the Body Style. The following one or two letters identify the Exterior
Paint Color. The next code consisting of two numbers, or a letter and a number, identifies
the Interior Trim. The Date Code showing the date the car was manufactured follows the
Trim Code and consists of two numbers and a letter. The next code gives the district in
which the car was ordered and consist of two numbers. The next to the last code is the
Axle Ratio Code and is designated by a number for a conventional axle or a letter for an
Equa-Lock axle. The last code in the vehicle data is the Transmission Code and consist of
one number. The charts that follow, list in detail the various vehicle data codes.


The numeral "7" designates 1967.

* Denotes where full size Fords were assembled.


Code Letter

A  Atlanta *

B  Oakville *

C Ontario

D   Dallas *

E   Mahwah *

F   Dearborn

G   Chicago *

H   Lorain

J   Los Angeles *

K  Kansas City

L   Michigan Truck

N  Norfolk *

P  Twin Cities *

R  San Jose

S  Pilot Plant (Allen Park, MI)*

T  Metuchen

U  Louisville *

W  Wayne *

Y  Wixom

Z  St Louis



The model code number indentifies the product line series and the particular body style:
the first of the two digits shows the product line, and the second digit shows a two-door
style by and odd number or a four-door style by an even number.


Body Serial Code | Body Style Code | Body Type


44                                54A                4-Door Sedan - Bench Seat

44                                54B                4-Door Sedan  -Bench Seat with Formal Roof

45                                76A               2-Door Convertible - Bench Seat

45                                76G               2-Door Convertible - Bucket Seat

47 63A 2-Door Hardtop- Bench Seat

47 63G 2-Door Hartop - Bucket Seat

48                                57A                4-Door Hardtop - Bench Seat


54                                 54C               4-Door Sedan - Bench Seat

54                                 54D               4-Door Sedan-Bench Seat with Formal Roof

57                                 63B               2-Door Hardtop-Bench Seat

58                                57B               4-Door Hardtop- Bench Seat


64                             54E                 4-Door Sedan -Bench Seat

68                             57F                 4-Door Hardtop-Bench Seat

67                              63F                 2-Door Hardtop-Bench Seat

65                             54F                 2-Door Convertible-Bench Seat


61                               54J              4-Door Sedan -Bench Seat

62                                57C              4-Door Hardtop-Bench Seat


69                                63D              2-Door Hardtop


72                                 71B                4-Door 6 Passenger

72                                 71C               4-Door 9 Passenger

Colony Park

76                                71E              4-Door 6 Passenger

76                                71A              4-Door 9 Passenger




A 8-Cylinder 289 (4V) Premium Fuel

B 6-Cylinder 240 Cubic Inch (1V) (Police)

C 8-Cylinder 289 Cubic Inch (2V)

D 8 Cylinder 427 (8V Hi Perf SOHC)

E 6-Cylinder 240 Cubic Inch (1V) (Taxi)

H 8-Cylinder 390 Cubic Inch (2V Spec.)

K 8-Cylinder 289 (4V Hi Perf)

L 8 Cylinder 427 (4V Hi Perf SOHC)

M 8-Cylinder 410 Cubic Inch (4V)

P 8-Cylinder 428 Cubic Inch (4V Spec.) (Police)

Q 8-Cylinder 428 Cubic Inch (4V)

R 8 Cylinder 427 (8V Hi Perf)

S 8 Cylinder 390 (4V)

V 6-Cylinder 240 Cubic Inch (1V)

W 8 Cylinder 427 (4V Hi Perf)

Y 8-Cylinder 390 Cubic Inch (2V)

Z 8-Cylinder 390 Cubic Inch (4V)

3 8-Cylinder 289 Cubic Inch (2V Lo Compression)

8 8-Cylinder 428 Cubic Inch (4V Lo Compression)


Each assembly plant. with each model year, begins with a consecutive unit number 10001
and continues on for each car built.


Two-tone paint codes us the same symbols as the single colors except that two symbols are used.
The lower body color will appear first in the warranty plate paint color space.

If a special paint is used, the paint color space will not be stamped.

Code   "M"Number            Color                          Sales Name

A           M30J-1724-A          Black                        Raven Black

B           M30J-1734-A          Lt Aqua                     Frost Turquoise

E           M30J-2045-A        Md. Beige Met.       Beige Mist

F           M30J-1226-A         Lt Blue                       Arcadian Blue

I           M30J-2041-A         Green                       Lime Gold

K           M30J-1903-A         Dk Blue Met              NightMist Blue Poly

M          M30J-1619-A          White                         Wimbledon White

Q           M30J-1624-A         Med Blue Met.  Brittany Blue

T           M30J-2008-A        Red                            Candy Apple

V           M30J-2066-A        Bronze Met               Burnt Amber

W           M30J-1908-A        Med Aqua Met          Clearwater Aqua

X           M30J-1632-A         Maroon Met.              Vintage Burgundy Poly

Y           M30J-2039-A        Dk Green Met            Dark Moss Green

Z           M30J-1915-A         Med Sage Gold Met   Sauterne Gold Poly

4           M30J-1901-A        Med Silver Med           Silver Frost Poly

6           M30J-1631-A        Lt Beige          Pebble Beige

8           M30J-1955-A        Yellow                          Springtime Yellow

0           M30J-2040-A        Lt Green                    Seafoam Green


* "M-32-J" Acrylic Paint Alternate with "M-30-J"

***in the sample below, colors may vary based on your monitor calibration, age, usage.



Deviation trim sets will use existing trim codes plus a suffix.  A trim code with a numerical
suffix is not serviced, while a trim code with an alphabetical suffix is serviced.


1A Black Cloth & Black Vinyl

1B Blue Cloth & Blue Vinyl

1D Red Cloth & Red Vinyl

1G Ivy Gold Cloth and Ivy Gold Vinyl

1K Aqua Cloth and Aqua Vinyl

1U Parchment Cloth & Parchment Vinyl w/Black

2A Black Vinyl

2B Blue Vinyl

2D Red Vinyl

2F Saddle Vinyl

2G Ivy Gold Vinyl

2K Aqua Vinyl

2U Parchment Vinyl w/Black

3B Blue Cloth & Blue Vinyl

3G Ivy Gold Cloth and Ivy Gold Vinyl

3K Aqua Cloth and Aqua Vinyl

3L Silver cloth and Silver Vinyl

3U Parchment Cloth & Parchment Vinyl w/Black

4A Black Vinyl

4B Blue Vinyl

4D Red Vinyl

4G Ivy Gold Vinyl

4K Aqua Vinyl

5A Black Cloth & Black Vinyl

5B Blue Cloth & Blue Vinyl

5G Ivy Gold Cloth and Ivy Gold Vinyl

5K Aqua Cloth and Aqua Vinyl

5U Parchment Cloth & Parchment Vinyl w/Saddle

6A Black Vinyl

6B Dark Blue Vinyl

6D Red Vinyl

6F Saddle Vinyl

6G Dark Ivy Gold Vinyl

6K Aqua Vinyl

6U Parchment Vinyl

7B Blue Vinyl

7D Red Vinyl

7F Saddle Vinyl

7G Ivy Gold Vinyl

7K Lt Aqua Vinyl

7U Parchment Cloth & Parchment Vinyl

8A Black Vinyl

8B Blue Vinyl

8D Red Vinyl

8F Saddle Vinyl

8U Parchment Vinyl w/ Black

9A Black Cloth & Black Vinyl

9B Dk Blue Cloth & Dk Blue Vinyl

9D Dk Red Cloth & Dk Red Vinyl

9G Dk Ivy Gold Cloth & Dk Ivy Gold Vinyl

9K Aqua Cloth & Aqua Vinyl

9L Silver Cloth & Silver Vinyl

9U Parchment Cloth & Parchment Vinyl w/Black

BA Parchment Vinyl w/Black

BB Parchment Vinyl w/Blue

BD Parchment Vinyl w/Red

BF Parchment Vinyl w/Saddle

BG Parchment Vinyl w/Ivy Gold

BK Parchment Vinyl w/Aqua

CA Parchment Vinyl w/Black

CB Parchment Vinyl w/Blue

CD Parchment Vinyl w/Red

CF Parchment Vinyl w/Saddle

CG Parchment Vinyl w/Gold

CK Parchment Vinyl w/Aqua

CU Parchment Vinyl

DA Black Vinyl

DB Blue Vinyl

DD Red Vinyl

DU Parchment Vinyl

E1 Black Cloth & Black Vinyl

E2 Dk Blue Cloth & Dk Blue Vinyl

E9 Parchment Cloth & Parchment Vinyl

F1 Black Vinyl

G1 Black Cloth & Black Vinyl

G2 Dk Blue Cloth & Dk Blue Vinyl

G9 Parchment Cloth & Parchment Vinyl

H! Black Vinyl

JA Black Leather

JB Blue Leather

JD Red Leather

JU Parchment Leather

KA Black Cloth & Black Vinyl

KB Dk Blue Cloth &Dk Blue Vinyl

KD Dk Red Cloth & Dk Red Vinyl

KG Ivy Gold Cloth and Ivy Gold Vinyl

KU Parchment Cloth & Parchment Vinyl w/Saddle

LU Parchment Cloth & Parchment Vinyl w/Black

MA Parchment Vinyl w/Black

MB Parchment Vinyl w/Blue

MD Parchment Vinyl w/Red

MF Parchment Vinyl w/Saddle

MG Parchment Vinyl w/Ivy Gold

MK Parchment Vinyl w/Aqua

NB Blue Vinyl

ND Red Vinyl

NU Parchment Vinyl

OE Beige Vinyl

PU Parchment Cloth & Parchment Vinyl

RA Black Vinyl

RB Dk Blue Vinyl

RD DkRed Vinyl

RF Saddle Vinyl

RU Parchment Vinyl

SA Black Vinyl

SU Parchment Cloth & Parchment Vinyl

TA Black Leather

TD Dk Red Leather

UA Black Vinyl

UU Parchment Vinyl

WA Black Vinyl

WU Parchment Vinyl

ZA Black Cloth & Black Vinyl

ZB Dk Blue Cloth &Dk Blue Vinyl

ZD Dk Red Cloth & Dk Red Vinyl

ZG IDk vy Gold Cloth and Dk Ivy Gold Vinyl

ZK Aqua Cloth & Aqua Vinyl

ZL Silver Cloth & Silver Vinyl

ZU Parchment Cloth & Silver Vinyl


The code letters for the month are preceded by a numeral to show the day of the month when
the car was completed.  The second year code letters are to be used if 1961 model production
exceeds 12 months.

Month           First Model Year Second Model Year

January                   A                                    N

February                 B                                    P

March                      C                                   Q

April                         D                                   R

May                          E                                   S

June                         F                                   T

July                          G                                   U

August                     H                                   V

September              J                                    W

October                   K                                    X

November               L                                    Y

December               M                                   Z


Domestic Special Orders, Foreign Special Orders, and Pre-Approved Special Orders have
the complete order number recorded in this space.  Also to appear in this space is the two-digit
code number of the district which ordered the unit.  If the unit is regular production, only the
District code number will appear.

District Code



11  Boston

15 New York

16 Philadelphia

17 Washington

21 Atlanta

22 Dallas

23 Jacksonville

26 Memphis

31 Buffalo

32 Cincinnati

33 Cleveland

34 Detroit

41 Chicago

42 St. Louis

46 Twin Cities

51 Denver

52 Los Angeles

53 Oakland

54 Seattle

84 Home Office Reserve

90 Export




1     3-Speed Manual Shift

2     Overdrive

3 3-Speed Manual Shift

5    4-Speed Manual-Shift

U    C-6 Automatic

W    C-4 Automatic

Y     Cruise-O-Matic (MX)

X     Cruise-O-Matic (FX)

Z     Cruise-O-Matic (XPL Special)*

*The “XPL Special” was a heavy-duty version of the C6 that had more clutch packs; it was installed behind big block V-8s (390-2V, 390-4V, and 428-4V engines) in cars equipped with the optional Trailer Tow Package and some cars equipped with one of the Police Packages.


A number designates a conventional axle, while a letter designates an EquaLock differential.


1       3.00:1

4      3.25:1

5      3.50:1

6 2.80:1

8      2.75:1

9      4.11:1

0 310:1

Limited Slip

A     3.00:1

D      3.25:1

F      2.80:1
